Place of Origin : China
Brand Name : BWT
Certification : ISO9001
Model Number : BFL-CW6000-EN
MOQ : 1 Piece/Pieces
Delivery Time : 4-8weeks
Payment Terms : T/T
Supply Ability : 100,000/year
Product Name : 1080nm-6000W
Output Power : 6000W
Wavelength : 1080nm
Fiber bundle diameter : 50/100µm
Cable Length : 15m or Customized
Application : 3D cutting and welding , Li battery manufacture
1080nm-6000W Fiber Laser
Features:
Applications:
| Optical Character | |
| Power | 6000W |
| Wavelength | 1080±10 nm |
| Pump Wavelength | 976nm |
| Output fiber core diameter | 50μm/100μm |
| Cable Length | 15m or Customized |
| Beam Delivery | QBH or Customized |
| Guide Beam | Red |
| Operation Mode | Continuous or Modulated |
| Polarization | Random |
| Power Stability(25℃) | <±1.5% (2h) |
| Power Adjustment Scope | 10%-100% |
| Max. Modulation Frequency | 5kHz |
| Overall size and weights | |
| Weight | <70Kg |
| Outline Feature | 106mm*482mm*861mm |
| Electronic Character | |
| Voltage | 380±20V,AC,PE,50/60Hz |
| Power Consumption | 18 kW |
| Control Interface | RS232 |
| Water Cooling Parameters | |
| Mini. Water Cooling Capacity | ≥12 kW |
| Temperature Settings | 25℃( Laser Module), 30℃( QBH) |
| Cooling Tubes Size (Inner) | 25mm |
| Cooling Water Flux | >55L/min |
| QBH Cooling Water Flux | 1.5~2.0L/min |
|
|

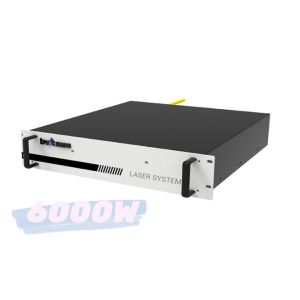

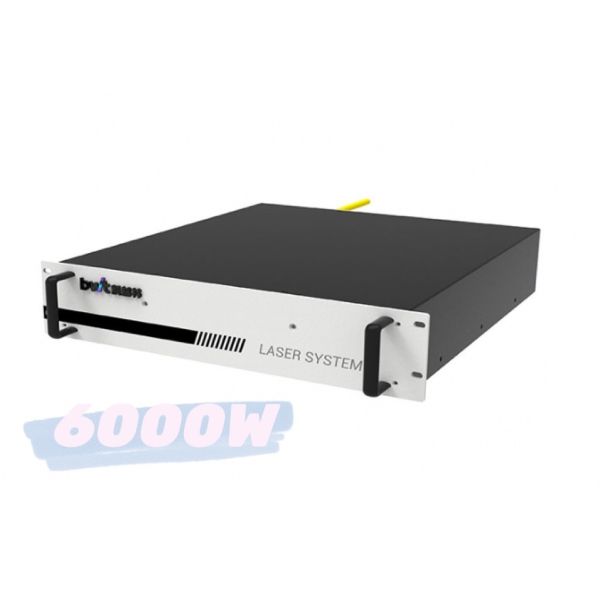

1080nm 6000w Cw Fiber Lasers Lighting Series High Power Images |
